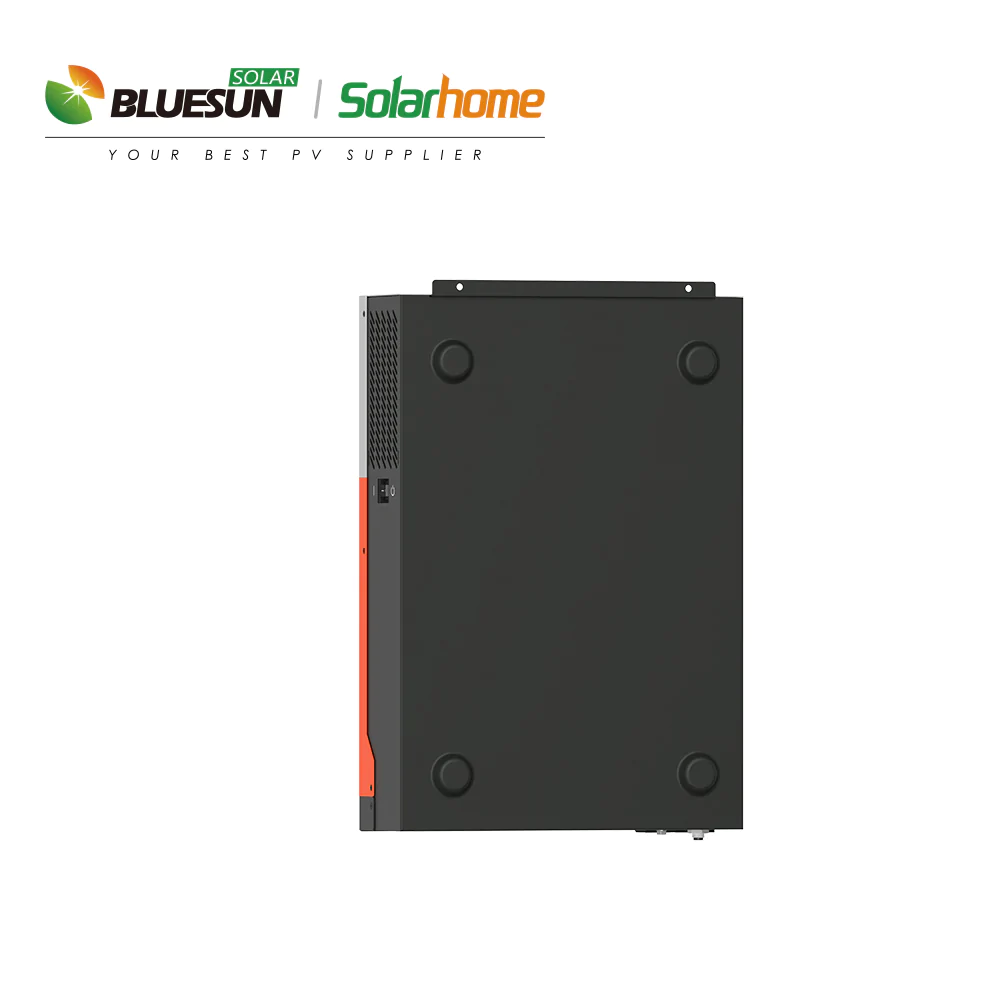

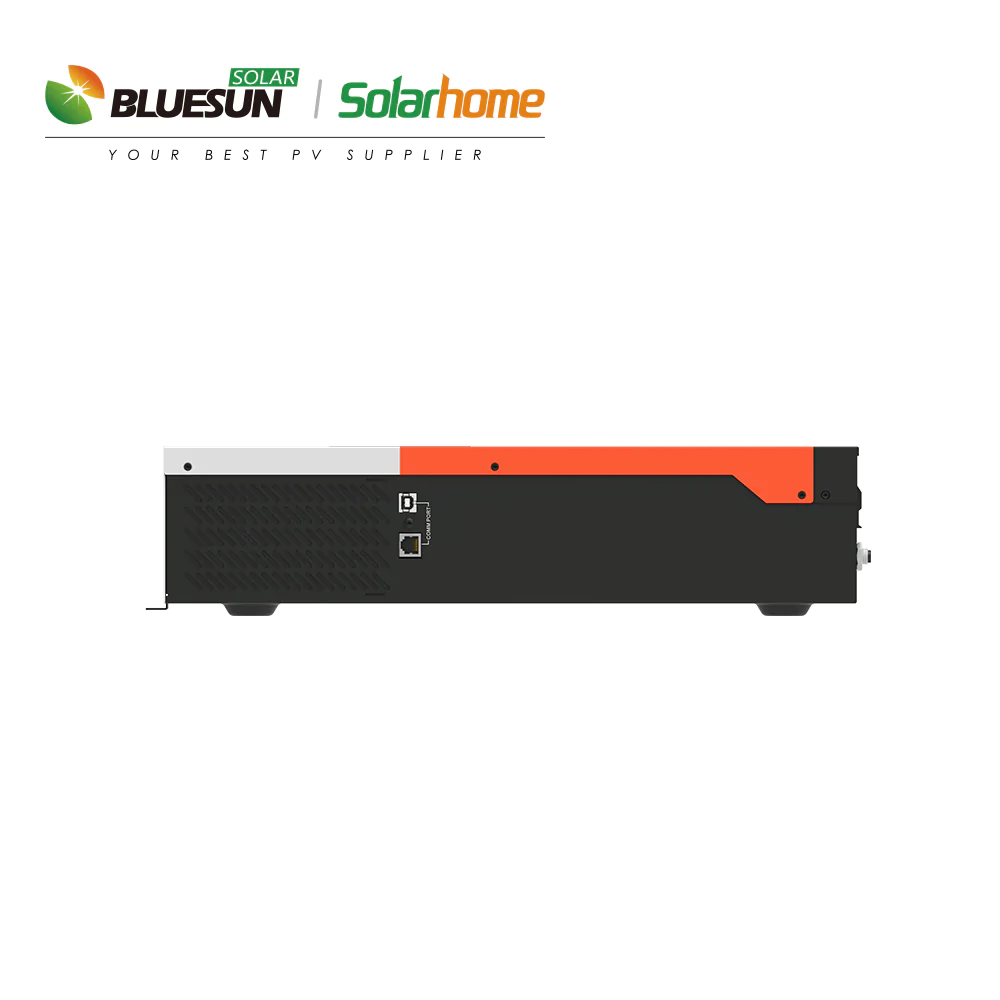

Bluesun Solar inverter 3.5KW
Bluesun Pure Sine Wave Solar Inverter With Charger Off Grid 3.5KW
Brand:
Categories:
share
- MODEL: BSM-3500LV-24
- Rated Power: 3500VA/3500W
- INPUT
- Voltage: 230VAC
- Selectable Voltage Range: 170-280VAC(for personal computers) / 90-280VAC(for home appliances)
- Frequency Range: 50Hz/60Hz (Auto sensing)
- OUTPUT
- AC Voltage Regulation (Batt. Mode): 230VAC±5%
- Surge power: 7000VA
- Efficiency(Peak) PV to INV: 97%
- Efficiency(Peak) BAT to INV: 94%
- Transfer Time: 10ms (for personal computers) 20ms (for home appliances)
- Wave form: Pure Sine Wave
- BATTERY & AC CHARGER
- Battery Voltage: 24VDC
- Floating Charge Voltage: 27VDC
- Overcharge Protection: 33VDC
- Maximum charge current: 80A
- SOLAR CHARGER
- PV Array Power: 4000W
- MPPT Range@ Operating Voltage: 120-450VDC
- Maximum PV Array Open Circuit Voltage: 500VDC
- Maximum Charging Current: 100A
- Maximum Efficiency: 98%
- PHYSICAL
- Dimension D*W*H(mm): 440*300*100
- Net Weight (kgs): 11kg
- Communication Interface: USB/RS232(Standard)
