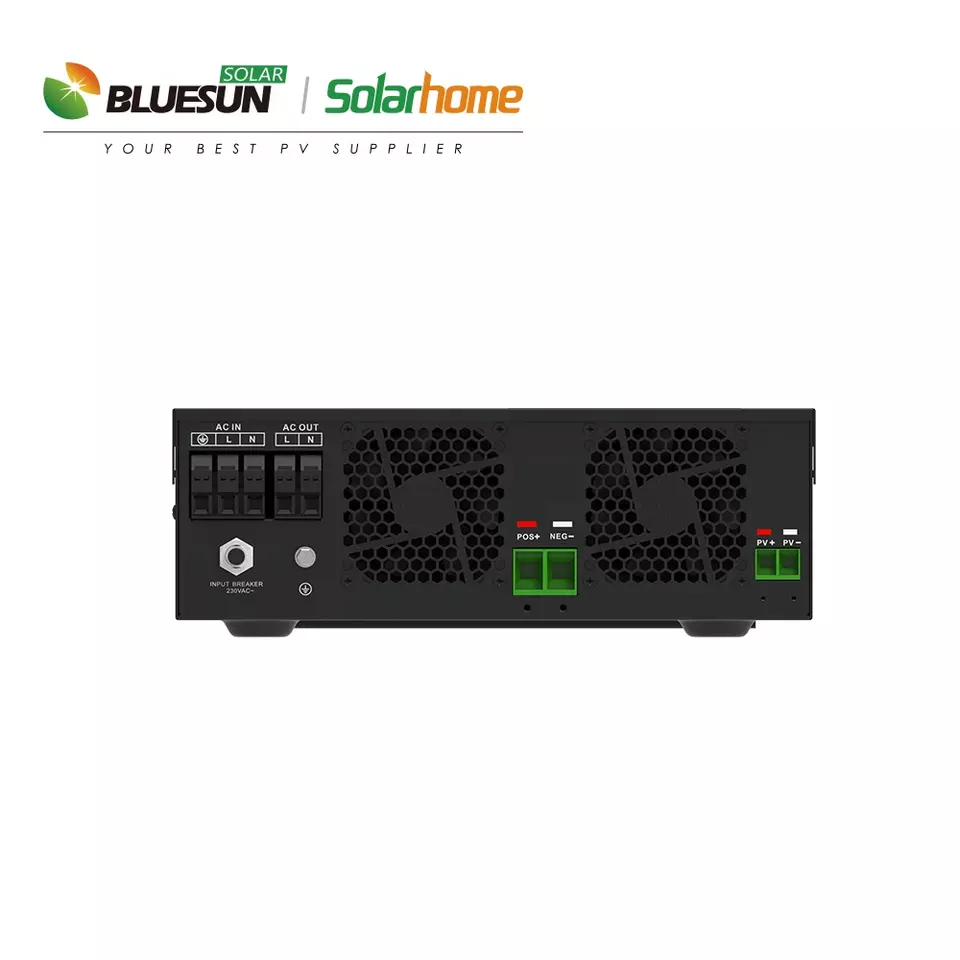

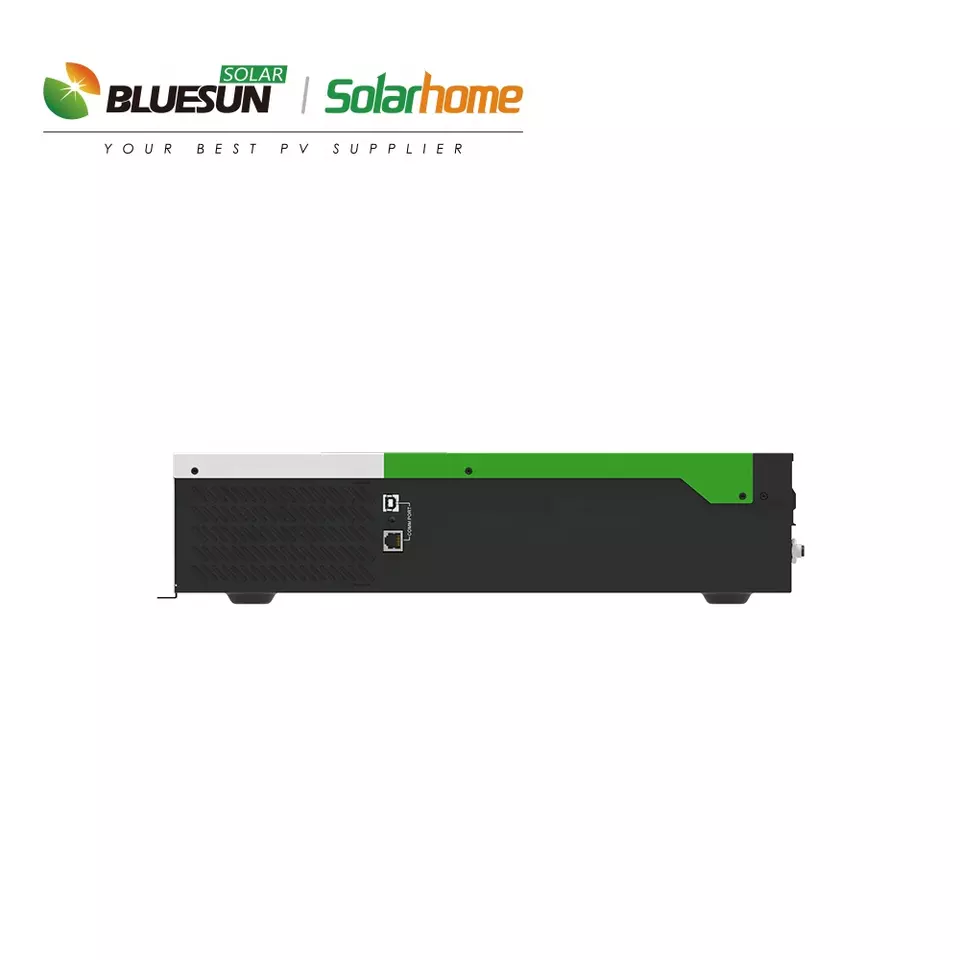

Bluesun Solar Inverter Hybrid On/Off Grid 5KW
Bluesun Home Use 5.5KW Off Grid Hybrid Inverter 220/230V Solar Inverter Max Parallel To 12 Units
Brand:
Categories:
share
- MODEL: BSM-5500BLV-48
- CAPACITY: 5.5KVA/5.5KW
- Parallel Capability: Yes,Max to 12 Units
- INPUT:
- Nominal Voltage: 220VAC
- Acceptable Voltage Range: 170-280VAC(For personal Computer)；90-280VAC(For Home Appliances)
- Frequency: 50/60 Hz (Auto sensing)
- OUTPUT:
- Nominal Voltage: 220/230VAC±5%
- Surge Power: 11000VA
- Frequency: 50/60 Hz
- Waveform: Pure Sine wave
- Waveform: Pure Sine wave
- Peak Efficiency (PV to INV): 96%
- Peak Efficiency (Battery to INV): 93%
- Overload Protection: 5s@>=15C% load; 10s@110%~150% load
- Crest Factor: 3:01
- Admissible Power Factor: 0.6-1 (inductive or capacitive)
- Other:
- Battery Voltage: 48VDC
- Floating Charge Voltage: 54VDC
- OverCharge Protection: 63VDC
- Charging Method: CC/CV
- Solar Charger& AC Charger:
- Solar Charger Type: MPPT
- PV Array Power: 5500W
- PV Array Open Circuit Voltage: 500VDC
- PV Array MPPT Voltage Range: 120VDC-450VDC
- Solar Input Current: 18A
- Solar Charge Current: 100A
- AC Charge Current: 60A
- Charge Current: 100A
- Dimensions, D x W x H(mm): 482x290x113
- Package Dimension^ D x W x H(mm): 565x380x190
- Net Weight (Kgs): 10
- Communication Interface: USB/RS23 Dry~contact
